AC/DC> LED Driver- LED Sürücü

Dünyaca ünlü MEANWELL Led sürücü ve Güç Kaynakları

Açıklama

AP Series

AP Series
Wattage :
8W~35W
Features :
90~264VAC input

Rectangular plastic case with IP42 level

Class II design, without FG

Low cost, small and compact size

Constant voltage mode for APV series

Constant current mode for APC series

Suitable for indoor LED lighting and moving sign applications

Model
C.V.:
APV-8 / APV-12 / APV-16 / APV-25 / APV-35
C.C.:
APC-8 / APC-12 / APC-16 / APC-25 / APC-35

AP-E Series

AP-E Series
Wattage :
8W~16W
Features :
180~264VAC input only

Rectangular plastic case with IP42 level

Class II design, without FG

Low cost, small and compact size

Constant voltage mode for APV-E series

Constant current mode for APC-E series

Suitable for indoor LED lighting and moving sign applications

Model
C.V.:
APV-8E / APV-12E / APV-16E
C.C.:
APC-8E / APC-12E / APC-16E

ELG Series

ELG Series
Wattage :
75W~300W
Features :
100~305VAC input range

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150 BE-Type)

Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

Suitable for LED street lighting and outdoor LED lighting

5 years warranty

Model
C.V.+C.C.:
ELG-75 / ELG-100 / ELG-150 / ELG-200 / ELG-240 / ELG-300
ELG-U:
ELG-100U / ELG-150U

ELG-C Series

ELG-C Series
Wattage :
75W~300W
Features :
100~305VAC input range

Constant current (C.C.) output

Constant power (C.P.) output

Built-in active PFC function

No load/standby power consumption <0.5W

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150-C BE-Type)

Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

Suitable for LED street lighting and outdoor LED lighting

5 years warranty

FDL Series

FDL Series
Wattage :
65W~100W
Features :
180~295VAC input range

Built-in active PFC function

Constant current design

Fully encapsulated with IP65 level (FDL-65)/IP67(FDLC-80)

No load power consumption <0.5W

3 years warranty

Model
C.C.:
FDL-65
C.P. :
FDLC-80 / FDLC-100 / FDHC-100

GSC Series

GSC Series
Wattage :
18W~40W
Features :
90~277VAC input, built-in active PFC function

Constant current mode

Fully isolated plastic case with IP40 design

Class II design, without FG

IEC320-C8 inlet for B type,
2 pole EURO plug for E type

No load power consumption<0.15W

Suitable for indoor LED lighting

Model
IEC320-C8:
GSC18B / GSC25B / GSC40B
EURO 2Pin:
GSC18E / GSC25E / GSC40E

HBG(P) Series

HBG(P) Series
Wattage :
60W~240W
Features :
Circular shape design:
HBG-60 : plastic case; HBG-100/160/240 : metal case; HBG-60P/100P/160P/240P : PCB type90~305VAC input, built-in active PFC function [90~295VAC for HBG-60(P)]Circular shape design: HBG-60: plastic case, HBG-100/160/240: metal case HBG-60P/100P/160P/240P:PCB typeIP67/IP65 design for indoor or outdoor installations for HBG-100/160/240Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) for HBG-100(P)/160(P)/240(P) B typeType “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HBG-100/160 only)

Suitable for LED high/low bay lighting, stage lighting and spot lighting

5 years warranty

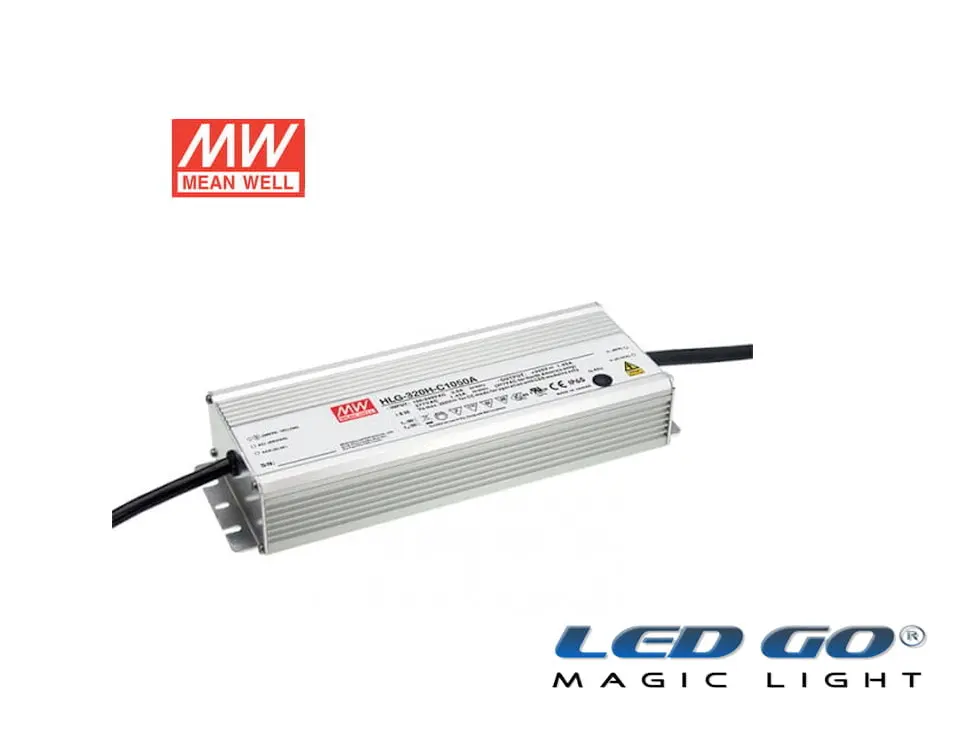

HLG Series

HLG Series
Wattage :
40W~600W
Features :
90~305VAC input, built-in active PFC function

96% high efficiency (HLG-600H)

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming

Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries

Suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement

IP68/-55℃ startup/10G vibration options available (Please contact MEAN WELL for details)

7 years warranty

HLG-C Series

HLG-C Series
Wattage :
70W~480W
Features :
90~305VAC input, built-in active PFC function

Constant current output with high output voltage >60VDC

Metal case, IP67/IP65 design for indoor or outdoor installations

Function options:
output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming; smart timer dimming

Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HLG-240H-C/320H-C only)

Suitable for LED street lighting and outdoor LED lighting

7 years warranty

HSG Series

HSG Series
Wattage :
70W
Features :
90~305VAC input, built-in active PFC function

Rectangular metal case

IP65 design for indoor or outdoor installations

Model
C.V.+C.C.:
HSG-70

HVG(C) Series

HVG(C) Series
Wattage :
65W~650W
Features :
Wide input range 180~528VAC

Metal case, IP67/IP65 design for indoor or outdoor installations

Built-in active PFC function

Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); timer dimming; smart timer dimming

Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (except for HVG-65 and HVGC-65/100)

Suitable for LED street lighting and outdoor LED lighting applications

5 years warranty

Model
C.V.+C.C.:
HVG-65 / HVG-100 / HVG-150 / HVG-240 / HVG-320 / HVG-480
C.C.:
HVGC-65 / HVGC-100 / HVGC-150 / HVGC-240 / HVGC-320
C.P. :
HVGC-480 / HVGC-650

LDB-L/LW Series

LDB-L/LW Series
Wattage :
300/350/500/600mA
Features :
Constant current DC/DC buck-boost LED driver

High efficiency up to 91%

Comply with EN55015 and FCC part 15 without additional input filter and capacitors

PWM dimming and remote ON/OFF control

Suitable for buck-boost type lighting systems (additional mother board is required)

Pin, wire style for choice

Model
Buck-boost:
LDB-L

LDH Series

LDH Series
Wattage :
350/500/700/1050mA
Features :
Constant current output DC/DC step-up LED driver

High efficiency up to 95%

Comply with EN55015 without additional any components

PWM+analog dimming and remote ON/OFF control

Suitable for boost type lighting systems (Additional mother board is required)

Pin, wire style for choice

Model
Step-up:
LDH-45(DA)

LP Series

LP Series
Wattage :
18W~150W
Features :
90~264VAC input (except for 18W and 150W)

Slim plastic case with IP67 level

Economical design

Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100)

-30~70℃ wide operation range

Suitable for economical LED lighting and moving sign applications

Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPVL-150 only)

Model
C.V.:
LPL-18 / LPH-18 / LPV-20 / LPV-35 / LPV-60 / LPV-100 / LPVL-150 / LPV-150
C.C.:
LPHC-18 / LPC-20 / LPC-35 / LPC-60 / LPC-100 / LPC-150

OWA Series

OWA Series
Wattage :
60W~120W
Features :
IP67 design for power body

Class II design, without FG

2 pole USA plug (U type)/ EURO plug (E type)

90~264VAC input (180~264VAC input for OWA-120E)

No load power consumption <0.15W

Energy efficiency Level VI

E-Type: meet CoC Version 5 (OWA-60E/90E); comply with EU ErP
U-Type: comply with EISA 2007/DoE and NRCan

5 years warranty

Model
USA 2Pin:
OWA-60U / OWA-90U / OWA-120U
EURO 2Pin:
OWA-60E / OWA-90E / OWA-120E

PCD Series

PCD Series
Wattage :
16W~60W
Features :
16W/25W: 90~135VAC or 180~295VAC 40W/60W: 180~295VAC

AC phase-cut dimming, work with leading and trailing edge TRIAC dimmers

Fully isolated plastic case with IP42 level

Built-in active PFC function

Class II design, without FG

Constant current mode

Suitable for indoor LED lighting

Model
C.C.:
PCD-16 / PCD-25 / PCD-40 / PCD-60

PLD Series

PLD Series
Wattage :
16W~60W
Features :
16W: 90~135VAC or 180~295VAC
25W: 90~295VAC
40W/60W: 180~295VACBuilt-in active PFC functionFully isolated plastic case with IP42 levelClass II design, without FGConstant current modeSuitable for indoor LED lighting
Model
C.C.:
PLD-16 / PLD-25 / PLD-40 / PLD-60

PLM Series

PLM Series
Wattage :
12W~40W
Features :
110~295VAC input (180~295VAC input for E type)

Built-in active PFC function

Fully isolated plastic case with IP30 level

Class II design, without FG

Push terminal I/O

Constant current mode

No load power consumption<0.5W

Suitable for indoor LED lighting

Model
C.C.:
PLM-12 / PLM-25 / PLM-40(E)

ULP Series

ULP Series
Wattage :
150W
Features :
90~295VAC input, built-in active PFC function

High efficiency up to 93%

U-bracket low profile: 33mm, suitable for built-in LED lighting systems

Model
C.V.:
ULP-150

ODL Series

ODL Series
Wattage :
45W~65W
Features :
Constant current output mode  (ODLC Series)

Constant voltage output mode  (ODLV Series)

Flicker free design( ODLC Series)

Built-in active PFC function

Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )

Suitable for indoor LED lighting applications

Model
C.C.:
ODLC-45(DA) / ODLC-65(DA)
C.V. :
ODLV-45 / ODLV-65

LDD-L Series

LDD-L Series
Wattage :
300/350/500/600/700mA
Features :
  • Constant current output DC/DC step-down converter
  • High efficiency up to 97%
  • Comply with EN55015 and FCC part15 without additional input filter and capacitors
  • PWM dimming and remote ON/OFF control
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully encapsulated with IP67 level for pin and wire style
  • Suitable for driving illumination LED
  • 3 years warranty
Model
C.C:
LDD-L

LDD-H Series

LDD-H Series
Wattage :
300/350/500/600/700mA
Features :
  • Constant current output DC/DC step-down converter
  • High efficiency up to 97%
  • Comply with EN55015 and FCC part15 without additional input filter and capacitors
  • PWM dimming and remote ON/OFF control
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully encapsulated with IP67 level for pin and wire style
  • Suitable for driving illumination LED
  • 3 years warranty
Model
C.C:
LDD-H / LDD-H-DA

DLP-04 Series

DLP-04 Series
Wattage :
4
Features :
90~295VAC full range input

Slim design

Plastic case with class II

No load/standby power consumption<0.5w( type L)

Withstand 300VAC surge input for 5 seconds

-20~+60℃ working temperature

Protections: short circuit / over voltage

Dimension: DLP-04R : 35*90*54.5 mm (W*H*D)
DLP-04L : 145*38*22 mm (L*W*H)

3 years warranty

Model
Din Rail Type:
DLP-04R
Slim Type:
DLP-04L

LDC Series

LDC Series
Wattage :
35W~80W
Features :
Constant power output

Flicker free design

3 in 1 dimming:0~10Vdc、PMW signal or resistance

Built-in active PFC function

No load power consumption <0.5W

working temperature: -25~+90℃

Protections: short circuit /

UL/ENEC/TUV/CCC/CB/CE certified

5 years warranty

Model
C.P.:
LDC-55 / LDC-35 / LDC-80

XLG Series

XLG Series
Wattage :
25W~200W
Features :
Wide input range 100~305V AC

Constant power mode with adjustable output current

Built-in active PFC function and Efficiency up to 90%

Dimming functions with 3 in 1

Protections: Short circuit/Over voltage/Over temperature

Surge protection with 6KV(L/N-FG)/4KV(L-N)

5 years warranty

Model
XLG-25 / XLG-50 / XLG-75 / XLG-100 / XLG-150 / XLG-200

XBG Series

XBG Series
Wattage :
160W
Features :
Wide range 100~305VAC mains input

Circular shape with Patent Design(Patent No.CN201220314551) and Seal housing IP67

Built-in active PFC function and constant power mode

AC input cable with waterproof connector for flexible using

Surge protection: 6 KV /4KV

Protections: short circuit, over voltage, over temperature

Life time >50,000 Hrs. and 5 years warranty

Model
XBG-160

LPF Series

LPF Series
Wattage :
16W~90W
Features :
90~305VAC input, built-in active PFC function (200~400VAC for LPFH-60/60D)

Fully isolated plastic case with IP67 level (16W optional)

Class II design, without FG

Built-in 3 in 1 dimming function for D type (1~10VDC, PWM signal or resistance)

Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPF-90/90D & LPFH-60/60D)

Suitable for LED lighting and moving sign applications

5 years warranty

Model
C.V.+C.C.:
LPF-16 / LPF-25 / LPF-40 / LPF-60 / LPFH-60 / LPF-90
C.C. (3 in 1 Dimming):
LPF-16D / LPF-25D / LPF-40D / LPF-60D / LPFH-60D / LPF-90D

NPF Series

NPF Series
Wattage :
40W~120W
Features :
90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP67 level

Class II design, without FG

No load/standby power consumption<0.15W (<0.5W for D type)

Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off ) for D type

Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries [NPF-40(D)/-60(D)/-120(D) only]

Suitable for LED lighting and moving sign applications

5 years warranty

Model
C.V.+C.C.:
NPF-40 / NPF-60 / NPF-90 / NPF-120
C.C. (3 in 1 Dimming):
NPF-40D / NPF-60D / NPF-90D / NPF-120D

PWM Series

PWM Series
Wattage :
40W~120W
Features :
90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP67 level

Constant voltage PWM style output

Class II design, without FG

No load power consumption<0.5W

Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)

Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (PWM-40/60/120 only)

Suitable for LED strip lighting

5 years warranty

Model
C.V.:
PWM-40 / PWM-60(DA) / PWM-90(DA) / PWM-120(DA)

PLC Series

PLC Series
Wattage :
30W~96W
Features :
90~264VAC input, built-in active PFC function

Fully isolated plastic case with screw terminal style of I/O

Suitable for indoor LED lighting and moving sign applications

Model
C.C.:
PLC-30 / PLC-45 / PLC-60
C.V.+C.C.:
PLC-100

PLN Series

PLN Series
Wattage :
20W~96W
Features :
90~295VAC input (90~277VAC for PLN-20), built-in active PFC function

Fully isolated plastic case with IP64 level

Suitable for indoor LED lighting and moving sign applications

Model
C.C.:
PLN-20 / PLN-30 / PLN-45 / PLN-60
C.V.+C.C.:
PLN-100

HLN Series

HLN Series
Wattage :
40W~80W
Features :
90~305VAC input, built-in active PFC function

Fully isolated plastic case with IP64 level

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for B type

User adjustable output voltage and current level for A type

Suitable for indoor LED lighting and moving sign applications

Model
C.V.+C.C.:
HLN-40H / HLN-60H / HLN-80H

LCM Series

LCM Series
Wattage :
25W~60W
Features :
180~295VAC input for 40W/60W, 180~277VAC input for 25W

Constant current mode

Built-in active PFC function

Multiple-stage output current level selectable by DIP switch

Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)

Built-in DALI interface and push dimming function for DA type

Suitable for indoor LED lighting applications

Model
3 in 1 Dimming:
LCM-25 / LCM-40(EO) / LCM-60(EO)
DALI Dimming:
LCM-25DA / LCM-40DA / LCM-60DA

LCM-U Series

LCM-U Series
Wattage :
40W~60W
Features :
90~132VAC input only

Constant current mode

Built-in active PFC function

Multiple-stage output current level selectable by DIP switch

Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)

Built-in DALI interface and push dimming function for DA type

Suitable for indoor LED lighting applications

Model
3 in 1 Dimming:
LCM-40U(EO) / LCM-60U(EO)
DALI Dimming:
LCM-40UDA / LCM-60UDA

IDL Series

IDL Series
Wattage :
25W~65W
Features :
Constant current output mode  (IDLC Series)

Constant voltage output mode  (IDLV Series)

Flicker free design  (IDLC Series)

Built-in active PFC function

Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )

Suitable for indoor LED lighting applications

Model
C.C.:
IDLC-25 / IDLC-45(DA) / IDLC-65(DA)
C.V. :
IDLV-25 / IDLV-45 / IDLV-65

PLP Series

PLP Series
Wattage :
30W~60W
Features :
90~264VAC input , built-in active PFC function

Suitable for built-in LED lighting systems

Model
C.C.:
PLP-30 / PLP-45 / PLP-60

IDP Series

IDP Series
Wattage :
25W~65W
Features :
Constant current output mode(IDPC Series)

Constant voltage output mode(IDPV Series)

Flicker free design(IDPC Series)

Built-in active PFC function

Built-in 2 in 1 dimming function (0~10VDC or PWM signal, dim-to-off )

Suitable for built-in LED lighting systems

Model
C.C.:
IDPC-25 / IDPC-45(DA) / IDPC-65(DA)
C.V. :
IDPV-25 / IDPV-45 / IDPV-65

HLP Series

HLP Series
Wattage :
40W~80W
Features :
90~305VAC input, built-in active PFC function

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)

Suitable for built-in LED lighting systems

Model
C.C.:
HLP-40H / HLP-60H / HLP-80H

AC/DC> LED Accessory – LED Accessories

DAP-04

DAP-04
Wattage :
NA
Features :
90~305VAC input

Convert DALI signal to PWM signal

4 DALI addressable output channels

Meet DALI standards(IEC62386-101,102,207)

Suitable to use along with MEAN WELL’s AC/DC LED PSU with 3 in 1 dimming function

Model
DAP-04:
DAP-04

İncelemeler

Henüz inceleme yapılmadı.

“AC/DC> LED Driver- LED Sürücü” için yorum yapan ilk kişi siz olun

E-posta hesabınız yayımlanmayacak. Gerekli alanlar * ile işaretlenmişlerdir

Hoşunuza gidebilir…

Sitemizden en iyi şekilde faydalanabilmeniz için çerezler kullanılmaktadır. Bu siteye giriş yaparak çerez kullanımını kabul etmiş sayılıyorsunuz . Ayarlar Kabul et

Çerez (Cookie) Bildirimi

Çerez (Cookie) Bildirimi Çerezler ledgroup.com.tr web sitesini ziyaret ettiğinizde, internet tarayıcınız tarafından yüklenen ve bilgisayarınızda, cep telefonunuzda veya tabletinizde saklanan küçük metin dosyalarıdır. ledgroup.com.trtarafından; ziyaretçilerine ihtiyaçları doğrultusunda daha iyi ve özel hizmetler sunabilmek, ziyaretçilerinin web sitesi ile sağlanan faydalardan yararlanmasını sağlamak amacıyla ve yasal yükümlülükler çerçevesinde, Kişisel Verilerin Korunması Kanunu'nda ve iletişim izni ile belirlenen amaçlar ve kapsamında kullanmak kaydıyla, sitenin kullanımına ilişkin bilgilerin toplanması, hatırlanması, bu bilgilerimizin işlenmesi, üçüncü kişilerle paylaşılması ve güvenli olarak saklanması gerekmektedir. Bu internet sitesini her ziyaret ettiğinizde, internet tarayıcınız çerezleri kaydeder ve böylece internet sitesi sizi tanır ve kullanıcı tercihleri gibi bilgilerinizi hatırlar. Çerezler ile internet sitesini kaç kişinin kullandığına, bir kişinin siteyi kaç kere ziyaret ettiğine, internet sitesinde ne kadar kaldığına ilişkin istatistiksel bilgiler elde edilir ve kullanıcılar için özel tasarlanan içeriklerin üretilmesine yardımcı olunur.
